AS Slot Diffuser
Air diffusers, plenum boxes & air valves

AS Slot Diffuser

Technical details

  • suitable for supply and exhaust air
  • made of aluminium
  • adjustment to diffuse air to one side, two sides, alternate sides and vertically

Product details

AS Slot Diffusers are made of aluminium. The one to four row design is suitable for both supply air and exhaust air. The nozzles, which can be adjusted to diffuse the air to one side, two sides, alternate sides and vertically, have a length of 200 mm. With air straightener and front-adjustable volume control via slot. The frame is made of natural anodized aluminium profiles. The nozzles are of matt black lacquered aluminium.

AS slot diffusers are supplied with cover frames. The galvanised steel connection box with side connecting piece, end plates and lugs with suspension drill-holes provides for flush mounting on the ceiling.

Technical specifications

Not all of the variant values listed here can be combined with each other. Use our Wildeboer configurator to easily check the possible combinations.

Slot rows
  • 1
  • 2
  • 3
  • 4
Length
  • from 400 to 2000 mm in 1 mm increments
Colour
  • Galvanized
  • In colour RAL
Air direction
  • Supply air (outflowing)
  • Exhaust air (inflowing)

Product pictures

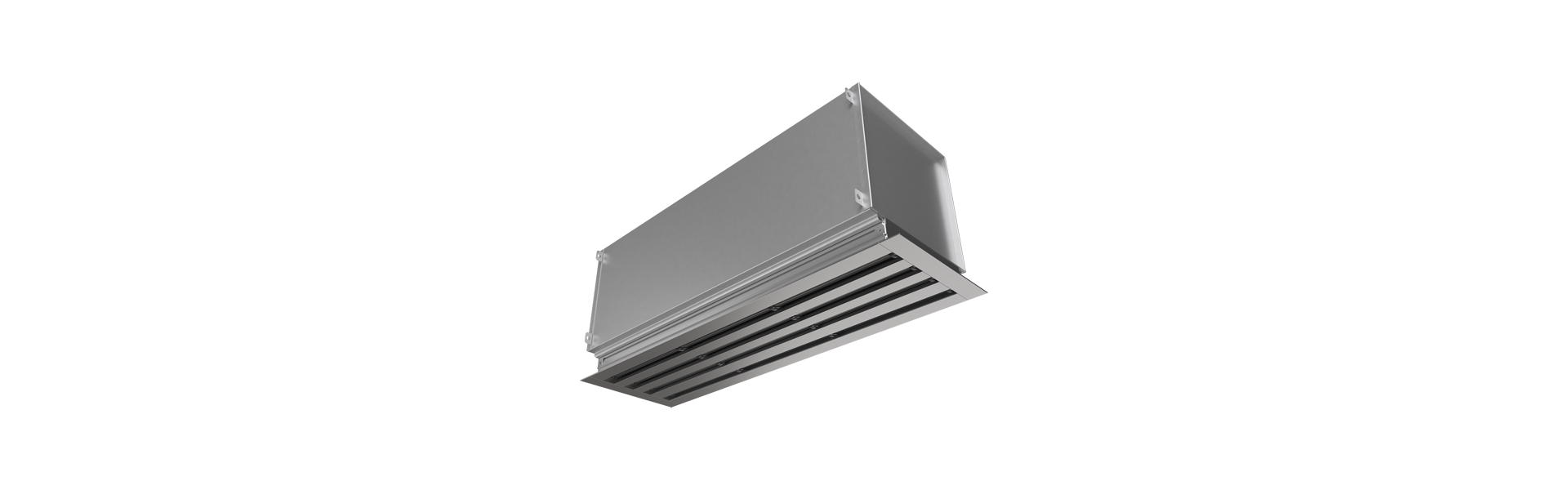

AS slot diffuser turned half-way from the front to the left

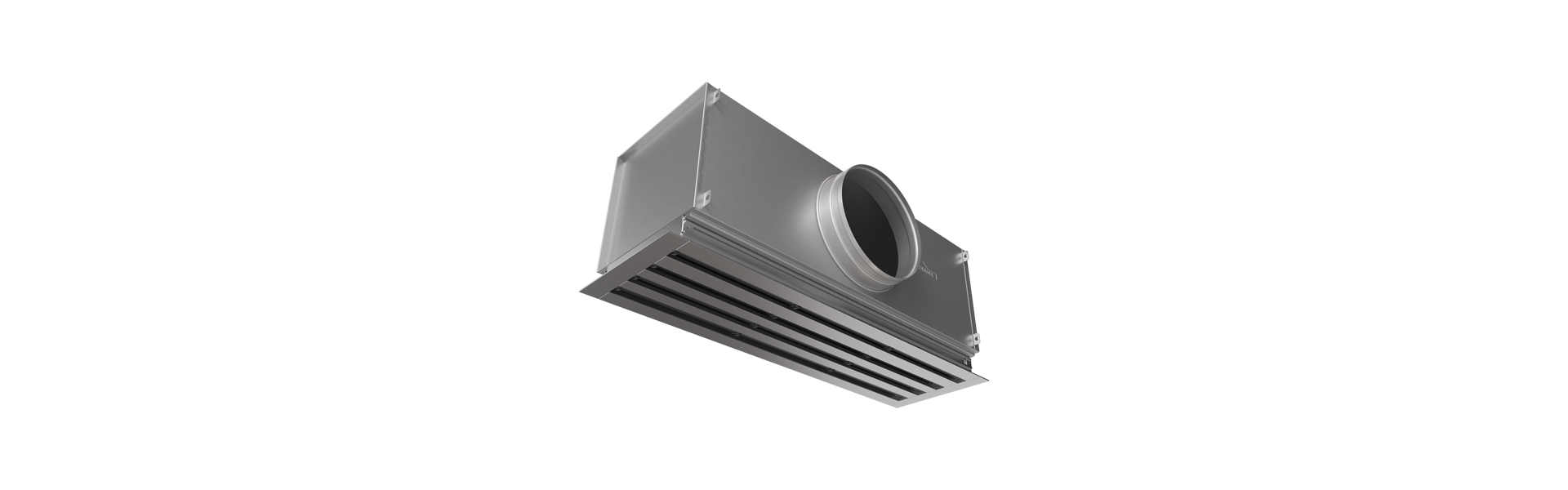

AS slot diffuser turned halfway down from the side

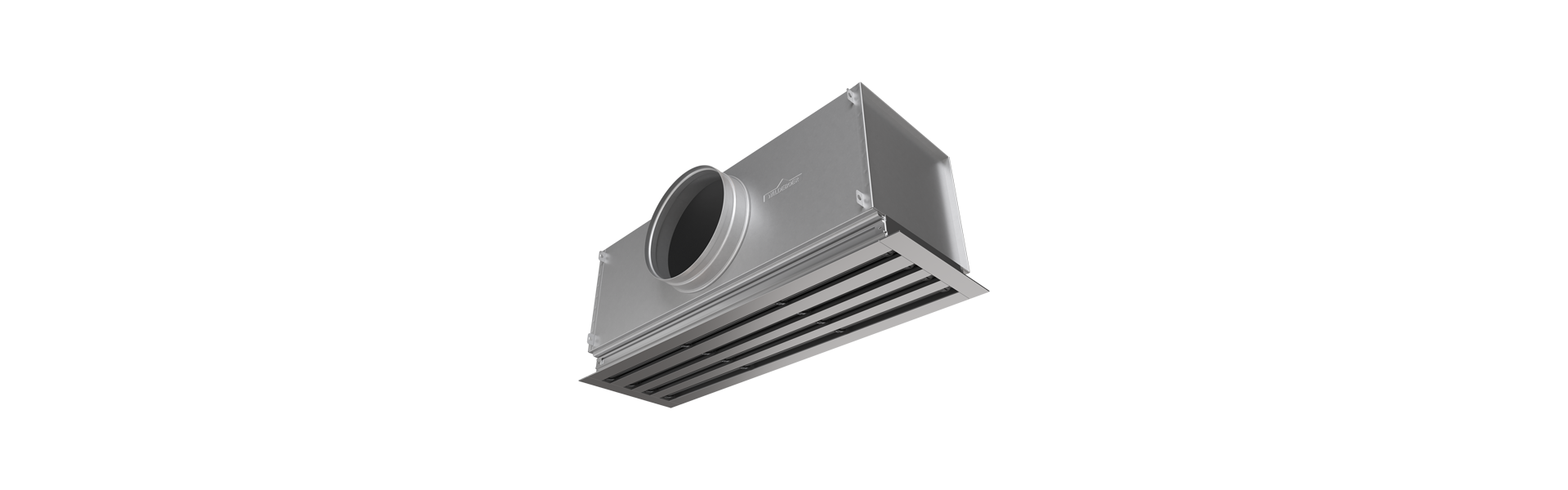

AS slot diffuser turned half down and to the right from behind

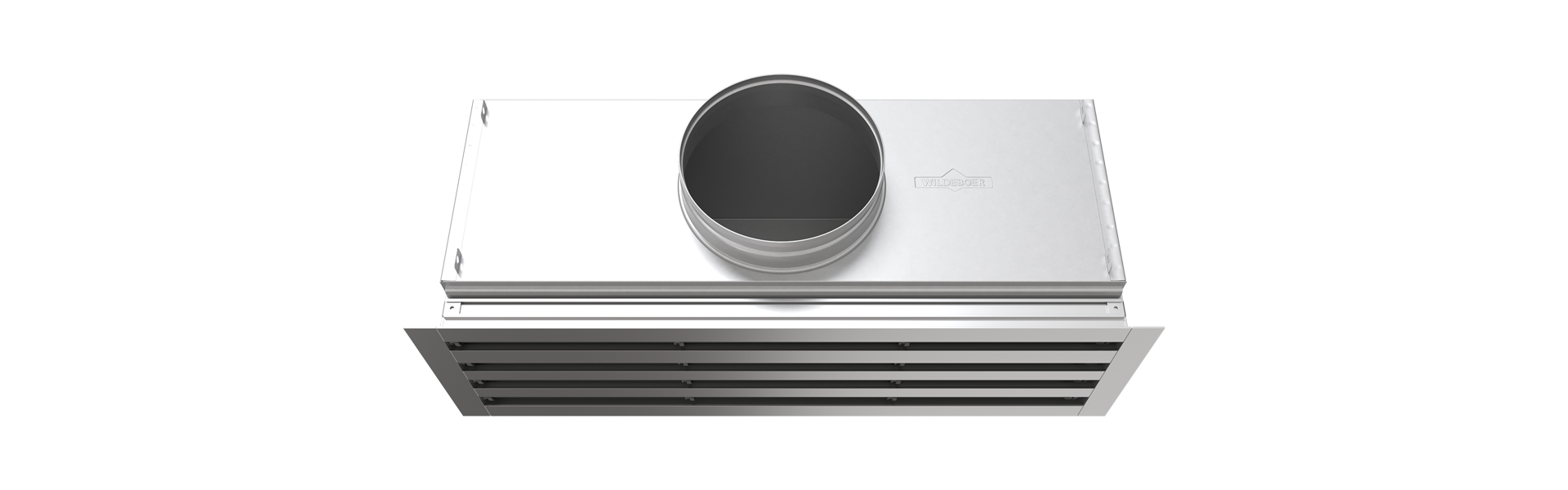

AS slot diffuser turned halfway down from behind

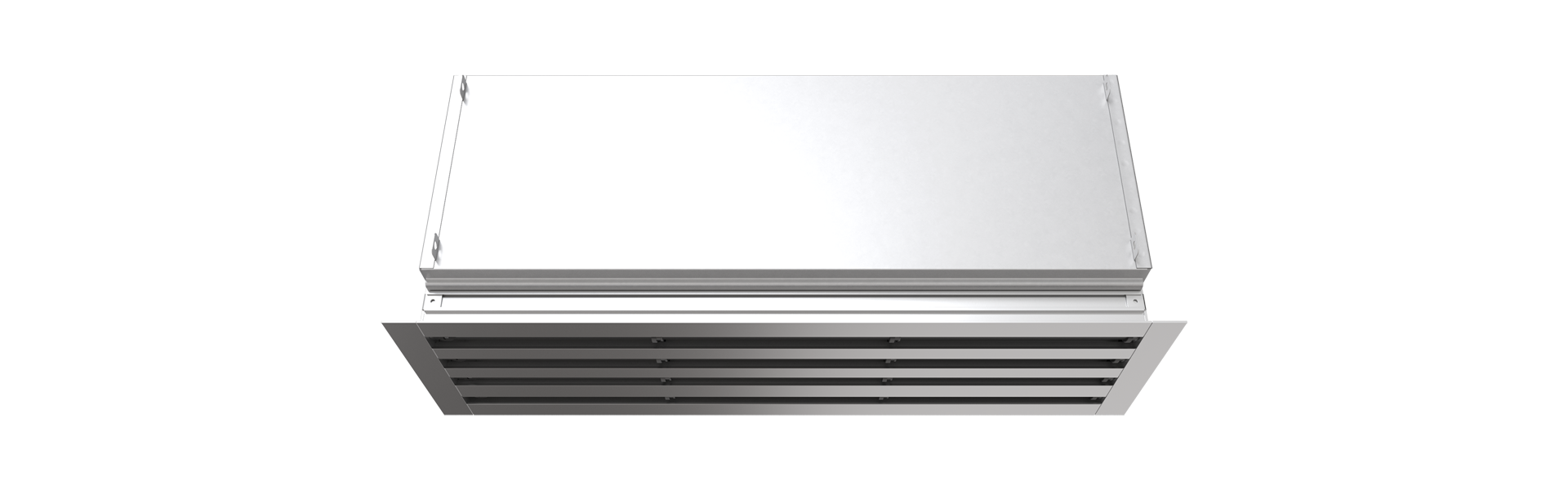

AS slot diffuser turned halfway down and to the left from behind

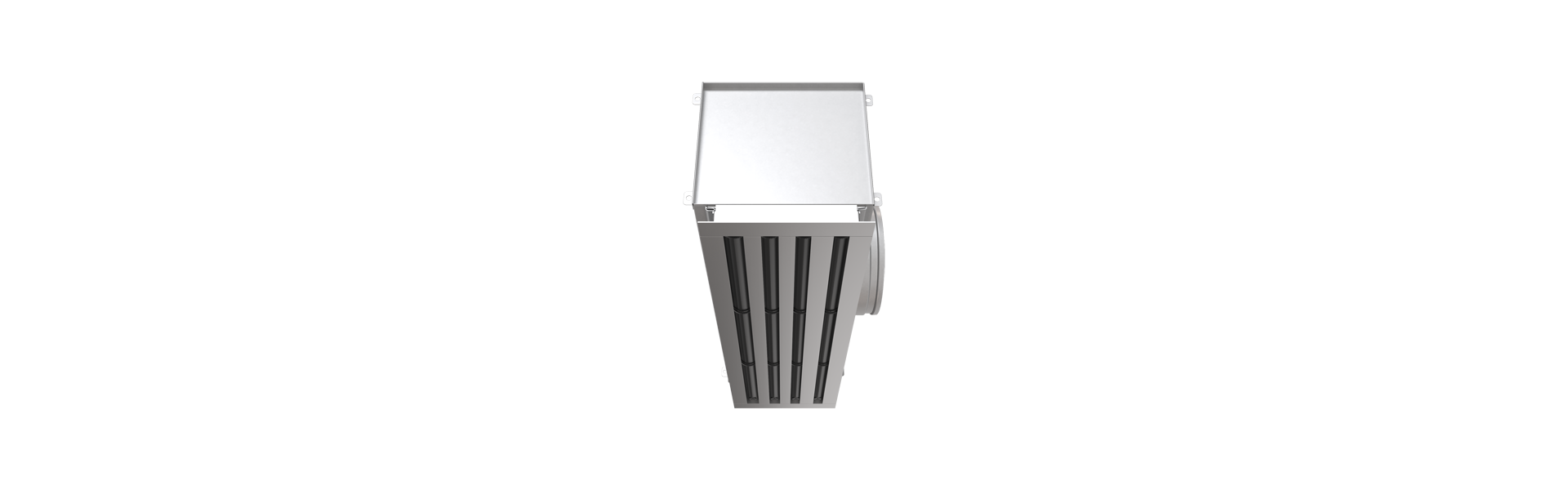

AS slot diffuser turned halfway down from the side

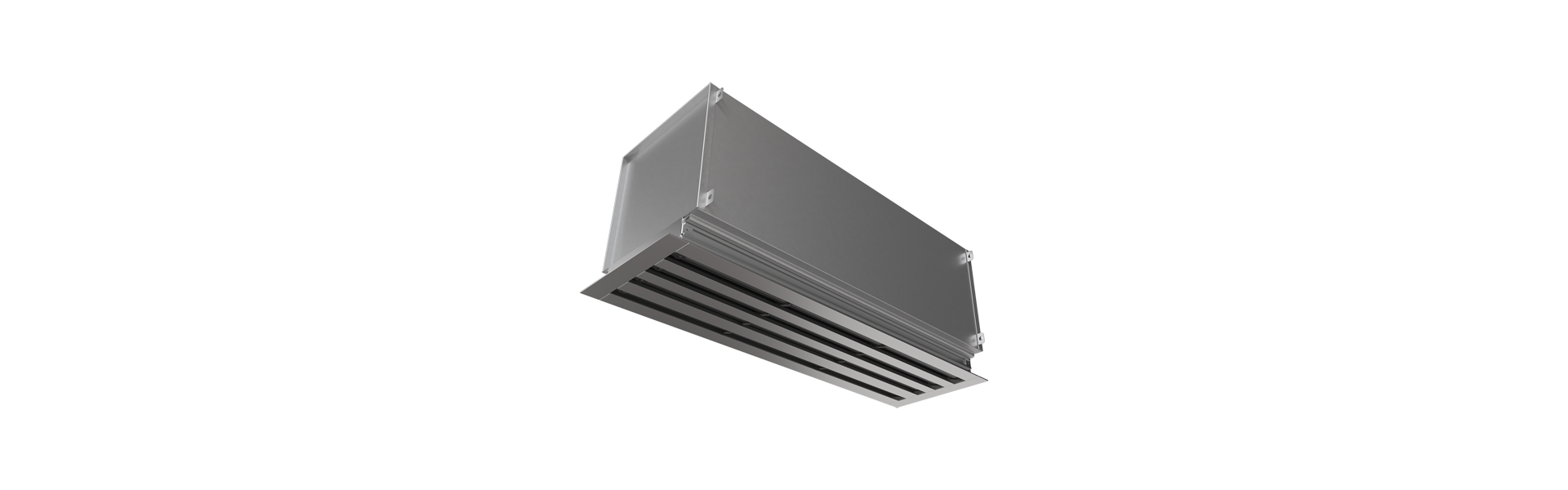

AS slot diffuser viewed from the front, turned downwards and to the left

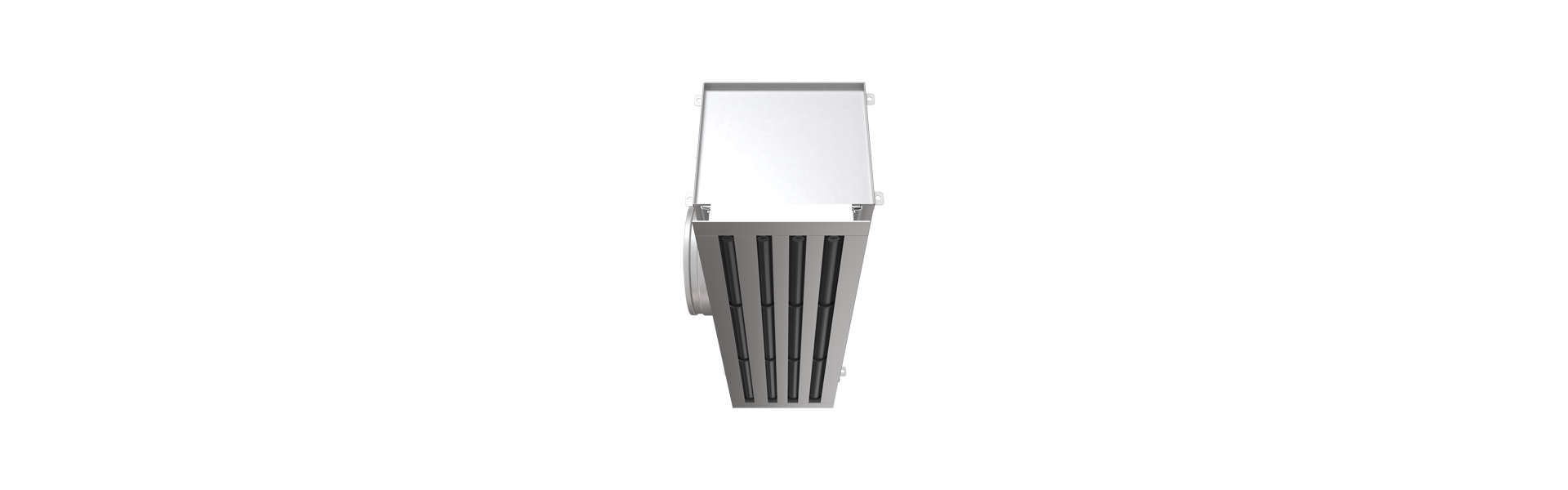

AS slot diffuser from the front
