BS2-BZ-01 BMZ module (fire alarm center)
The BS2-BZ-01 fire alarm control panel module enables the connection of on-site signalling devices to the Wildeboer-Net building management system. The module is characterised by highly variable connection options and automatic line monitoring.
Technical details
- Connection of on-site signalling devices to the Wildeboer-Net
- Monitoring of the lines connected to the inputs for failures
- Can be used for sequential controls, trip group controls and calendar controls
Product details
The BS2-BZ-01 fire alarm control panel module enables the connection of on-site signaling devices to the Wildeboer-Net building control system. Four inputs for potential-free contacts and two potential-free outputs can be used.
The special feature: Lines connected to the inputs are automatically monitored for faults. This information can be used for sequence controls, trip group controls and calendar controls., for example. All operations and functions can be performed remotely or manually using the pushbuttons in the BMZ module.
Properties:
- The modules save data permanently, even in the event of a power failure.
- With a Euro plug and a 1.5 m connection cable for direct connection to an on-site 230 V AC plug. Alternatively, the Euro plug provided on the module may be removed for permanent connection.
- LEDs for displaying operating data.
- Pushbutton for manual operation of the basic functions.
- Real-time clock with leap year correction and summer/winter time changeovers.
- Four inputs for potential-free contacts. Connections with plug-in screw terminals. Connected lines are monitored by the module for faults.

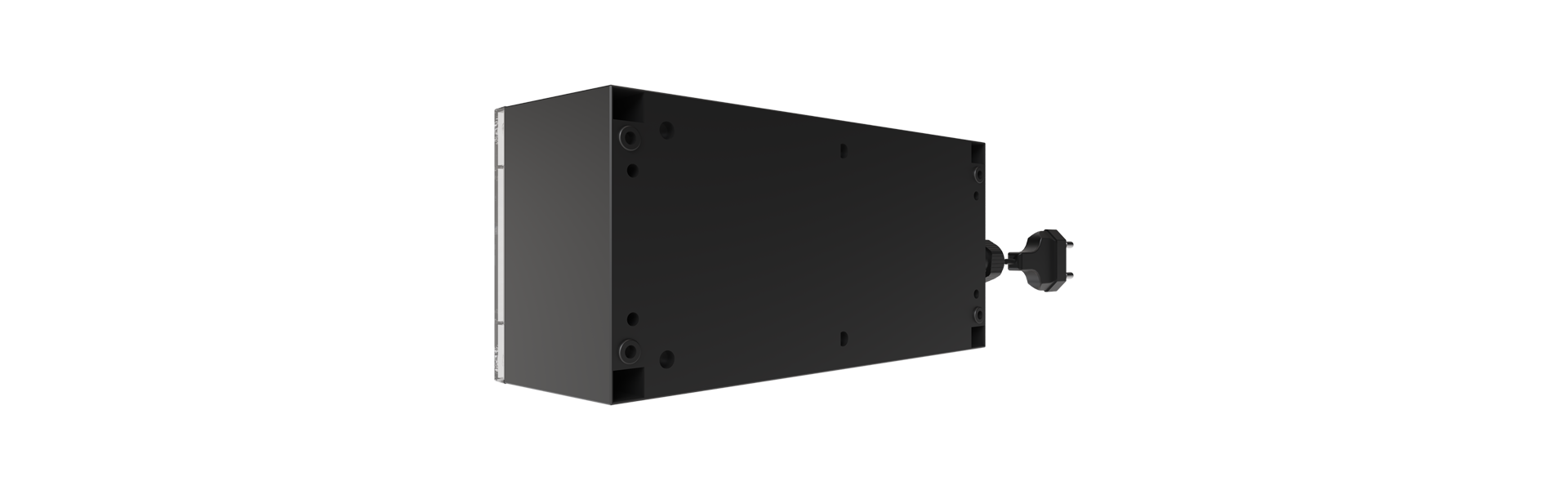

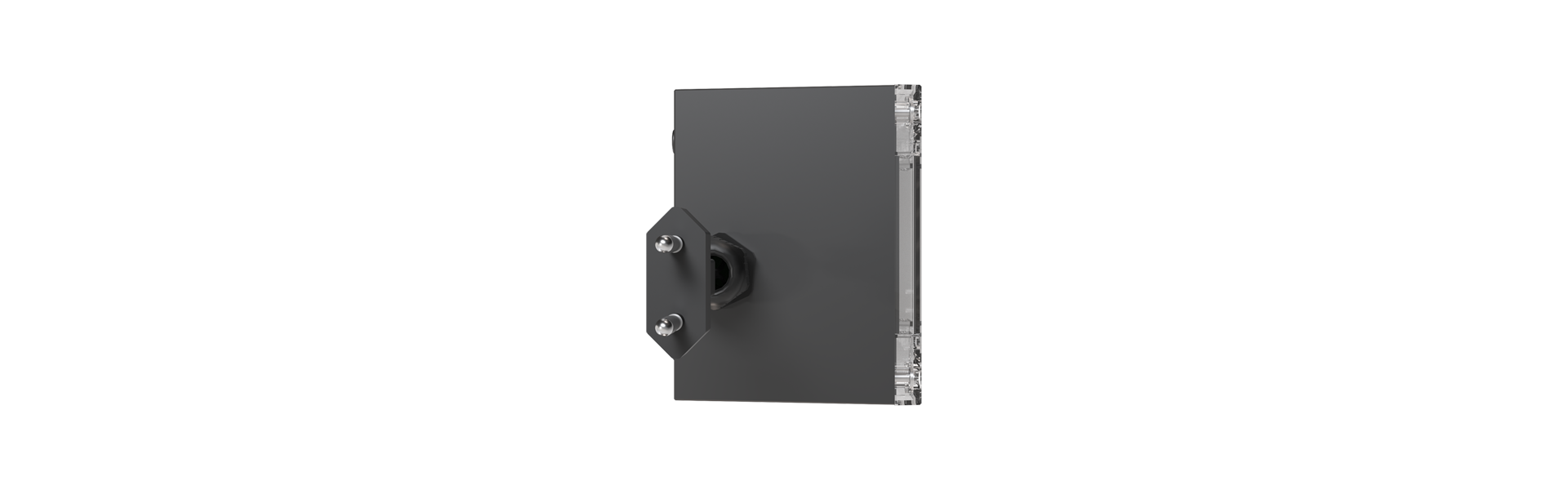

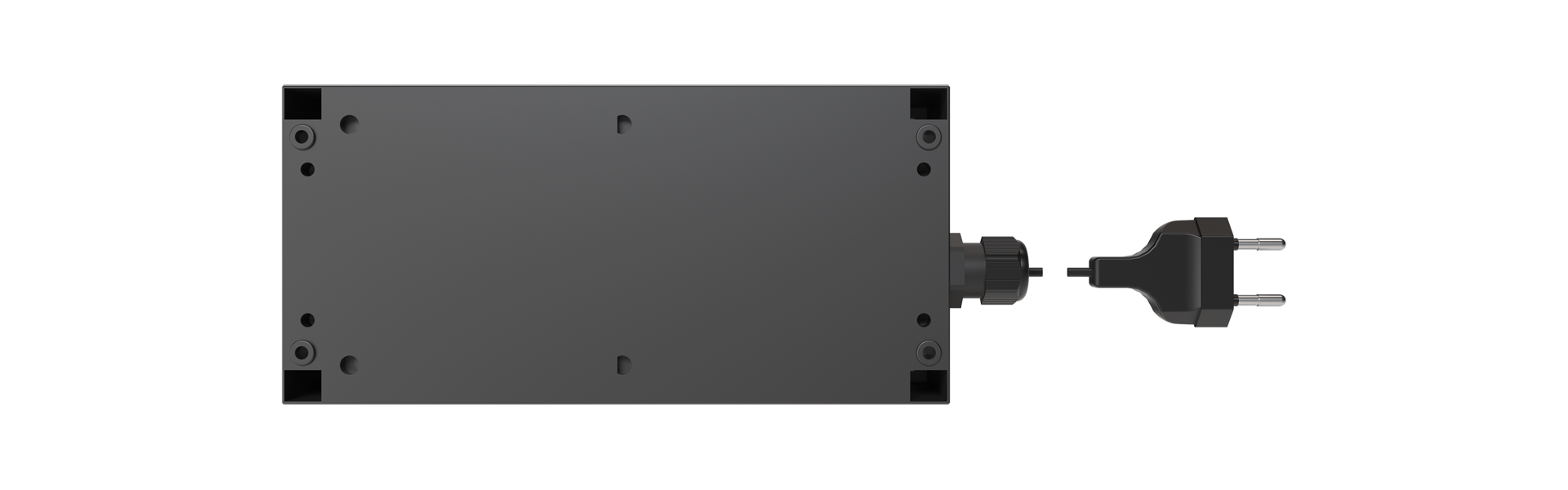

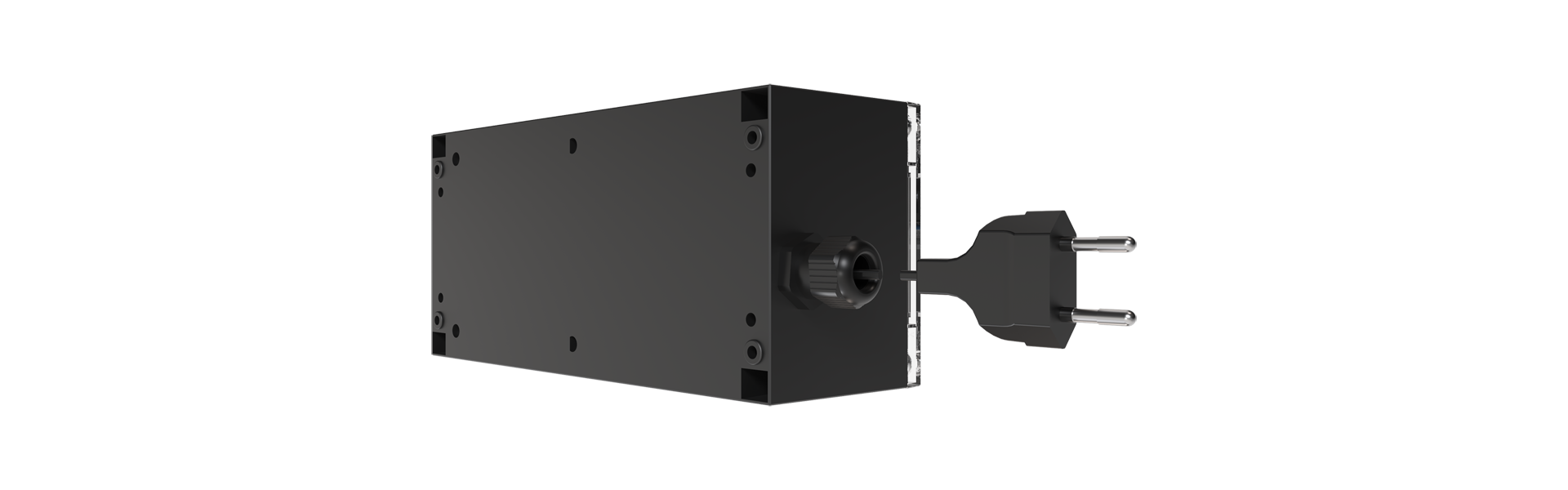

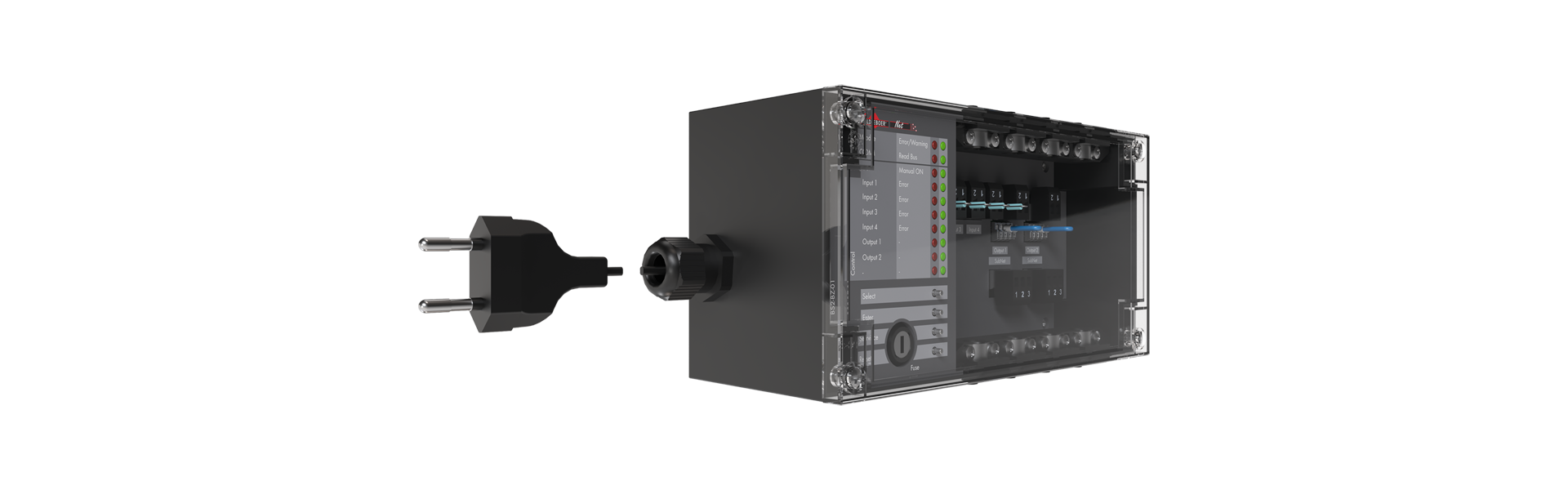

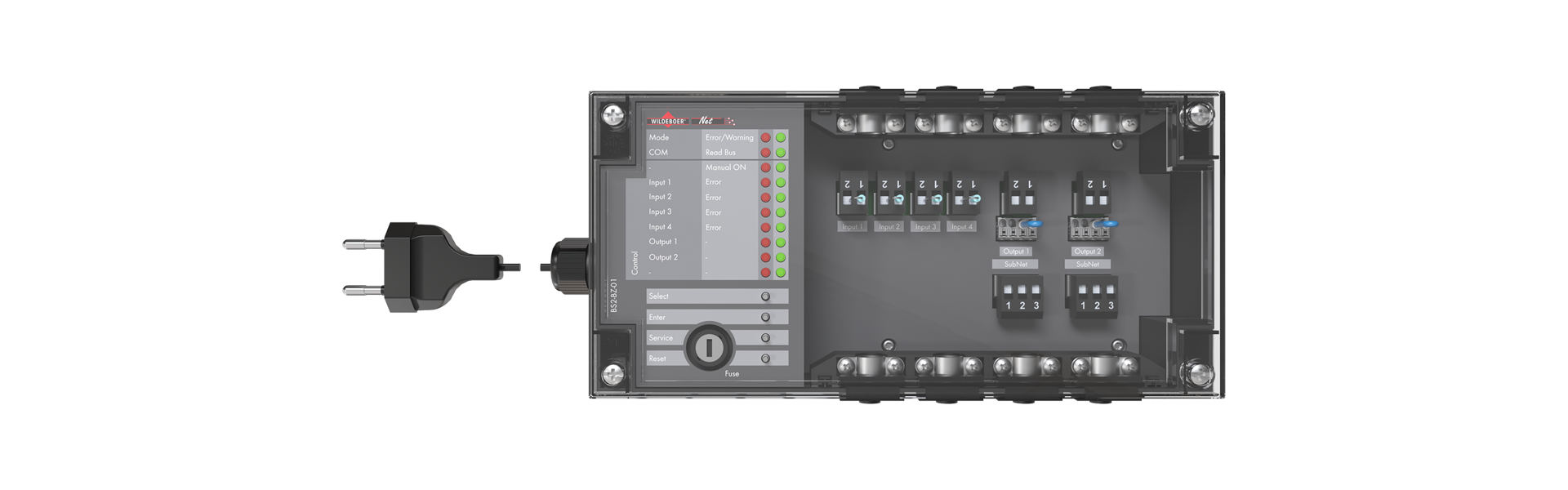

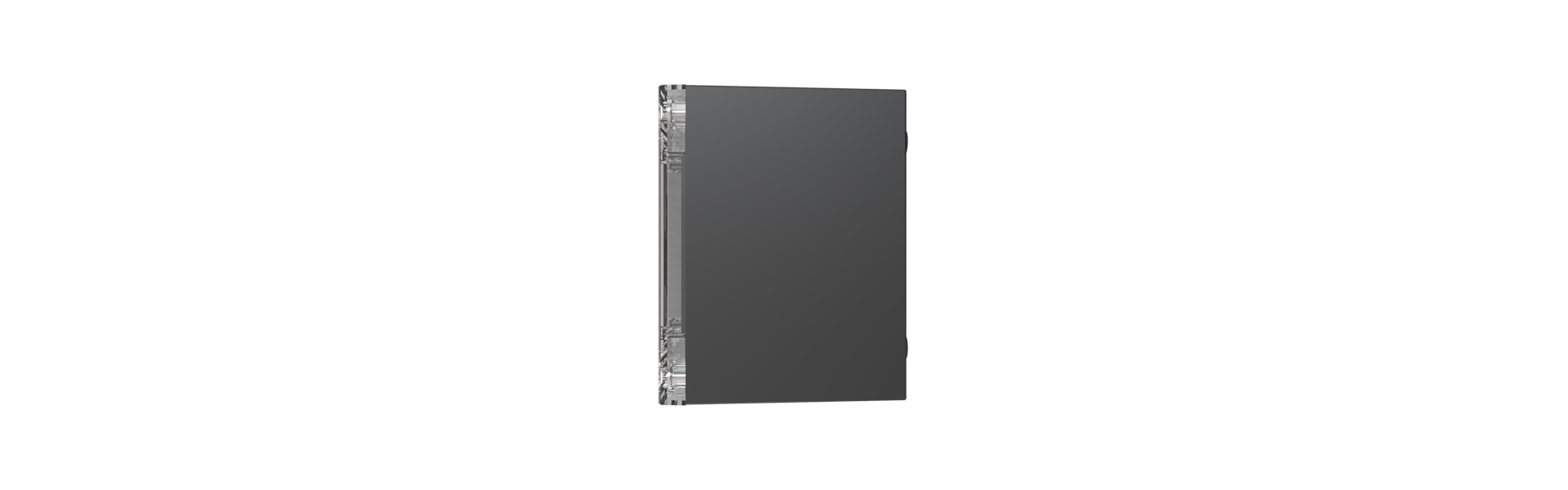

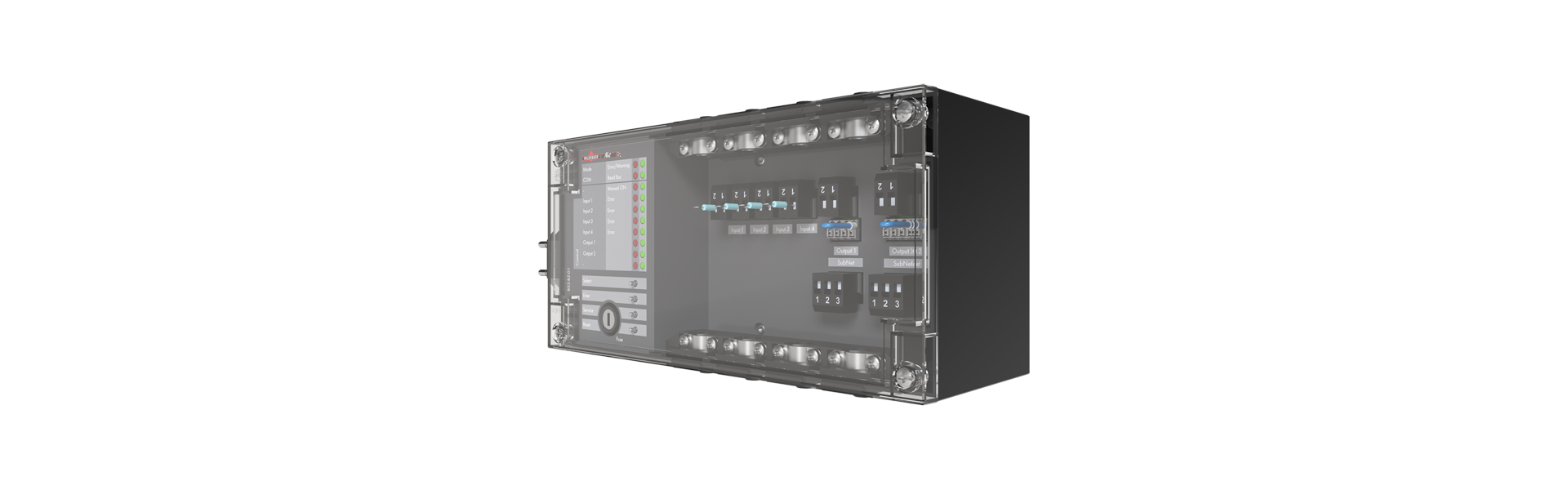

Product pictures
